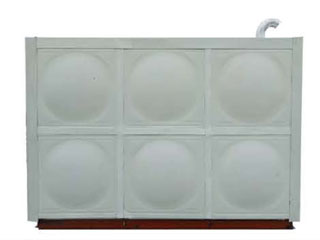

The thermal insulation water tank is different from the stainless steel fire water tank. The thermal insulation water tank refers to the addition of special industrial and thermal insulation materials in the interlayer of the water tank, so that the water tank must maintain a certain temperature to meet the needs of life or industry.

The heat preservation water tank can be composed of three parts: a high water tank, a water storage tank and a low water tank according to the different materials used for processing. There is a mechanically controlled moistener in the high water tank, the flush valve and drain valve, and the valve seat of the electrode float switch moistener and flush valve are respectively connected with the three-way flush pipe arranged in the water storage tank, and the drain valve Open, the high water tank is connected with the water storage tank; the low water tank is equipped with a lever type float switch, and the float spool is opened: the water storage tank is connected with the low water tank; the low water tank is also equipped with a submersible pump, filter and sewage pipe, and the outlet of the submersible pump Located in the high tank, the shut-off of the submersible pump is controlled by an electrode float switch in the high tank. The use of the reclaimed water tank can save a large amount of clean water available for drinking, and the social and economic benefits are remarkable. The reclaimed water tank can be matched with various types of existing closets.

1. The inner box of the heat preservation water tank is made of stainless steel, and the outer box can be made of stainless steel or galvanized. It is light in weight, beautiful in appearance, clean and hygienic.

2. Polyurethane overall foam insulation layer, small heat loss, good insulation effect.

3. Each functional hole is made according to the customer's requirements, equipped with a stainless steel inner wire interface, which is convenient and quick to install on site.

4. The joints are welded by high-frequency resistance seam welding to ensure that they are not easy to rust and leak.

5. The size can be made according to customer requirements

The heat preservation water tank can be installed on the flat roof, the ground or the household series can also be installed on the balcony outside or the kitchen inside. Shangsheng room and other positions.

The installation position of the heat preservation water tank should be convenient for drainage from the sewage outlet, and the hot water tank should be as close as possible to the water point and the installation position of the main engine to reduce the heat loss of the pipeline.

For floor engineering, no matter the size of the water tank, it should be placed on the load-bearing beam: if the water tank exceeds 5 tons, the customer is required to make a load-bearing foundation. Divide the water tank into multiple parts and place them on the load-bearing beam (under normal circumstances, a single round water tank should not exceed 10 tons, and a single square water tank should not exceed 20 tons).

When the heat preservation water tank is placed on the roof, it should be placed on the stainless steel mirror to reflect light, which will affect the surrounding office or living environment.

The installation of the thermal insulation water tank on the ground must be done on a level foundation with a height of 150mm or more, and the location of the water tank should not affect the surrounding residents.

The foundation of the thermal insulation water tank needs to be placed on a horizontal plane, and the foundation plane should not have water accumulation; if the bracket welded by I-beam or channel steel is used, the position where the water tank is placed must be paved with steel plates to form a plane.

The circular heat preservation water tank should be placed upright, not horizontally.

There should be more than 600mm of installation and maintenance space around the water tank.

Because the circulating water pump equipped with the unit does not have a suction lift, the installation position of the water tank should not be lower than the unit. Considering the limited head, it should not be too higher than the unit. If conditions permit, it must be placed at the same level.

★Our country has a vast territory and diverse climates. In the cold northwest and northeast regions, the water tanks installed outdoors will inevitably encounter insulation problems. At this time, it is necessary to make an insulation layer for the water tank, which is equivalent to wearing a thick Thick cotton coat to resist the severe cold.

★There are many kinds of insulation materials, commonly used are polyurethane, rubber and plastic, etc.

Among them, polyurethane is the one with the best thermal insulation effect, and it is also an innovative product of our company. It has been widely used in different occasions, and the market has responded well.

★The polyurethane insulation of the water tank produced by our company makes full use of the polyurethane

Urethane itself has good thermal insulation effect and bonding properties. It is integrally formed by high-pressure foaming and fits perfectly with various forms of water tank panels. The outer corner is reinforced, beautiful and durable, and prevents cold bridges.

★In addition, there are more economical and versatile rubber and plastic insulation for you to choose, which is a suitable choice for occasions where the insulation requirements are not very high.

★Innovatively adopts thin plate bonding on the outer surface of heat preservation, including color steel plate, stainless steel plate, aluminum-plastic plate, galvanized steel plate. Compared with the traditional aluminum foil protection, the insulation board using this protective material has a longer life, better effect and more beautiful appearance.
